Laser, Plasma & Waterjet Cutting Machines

This page covers laser cutting machines, plasma cutting machines, oxy-fuel cutting systems and waterjet cutting machines, including conventional 2D sheet-processing equipment and more complex multi-axis or 3D cutting platforms. Although the cutting processes differ, each can create demanding requirements for moving cables, hoses, linear components and supporting motion.

Cutting systems may also integrate automated loading, unloading, material handling and positioning equipment, creating additional motion around the primary cutting process.

The cutting technology changes both the machine architecture and the environment surrounding its moving components. Laser cutting machines often emphasize high speed, acceleration and automated material flow. Plasma and oxy-fuel cutting machines can expose nearby components to heat, flying sparks and heavy contamination, while waterjet cutting machines introduce wet and abrasive operating conditions.

Cable carriers, flexible cables, bearings and linear components should therefore be selected around the actual cutting process, travel and machine zone rather than using one solution across every CNC cutting machine.

High speed, acceleration, restricted installation space, continuous cable flexing and contamination are common challenges in CNC cutting machines. Travel can also vary dramatically, from compact laser cells to plasma and waterjet systems extending across very large cutting beds.

More complex cutting heads can add tilt, rotation and vertical movement to ordinary linear travel. That changes the cable-management problem from straightforward back-and-forth motion to multi-axis guidance that must control cables and hoses throughout the full movement of the cutting head.

Plasma and oxy-fuel cutting can expose machine components to heat, flying sparks and heavy dirt, while waterjet cutting introduces moisture and abrasive process material. Contamination can accelerate wear, interfere with moving mechanisms and make externally greased components more difficult to maintain.

Protected e-chain® cable carriers and appropriate dry-running polymer guides can help in demanding cutting-machine environments when their load, speed, temperature and environmental capabilities match the application. Component selection should be based on the conditions at the specific machine location rather than assuming every area sees the same exposure.

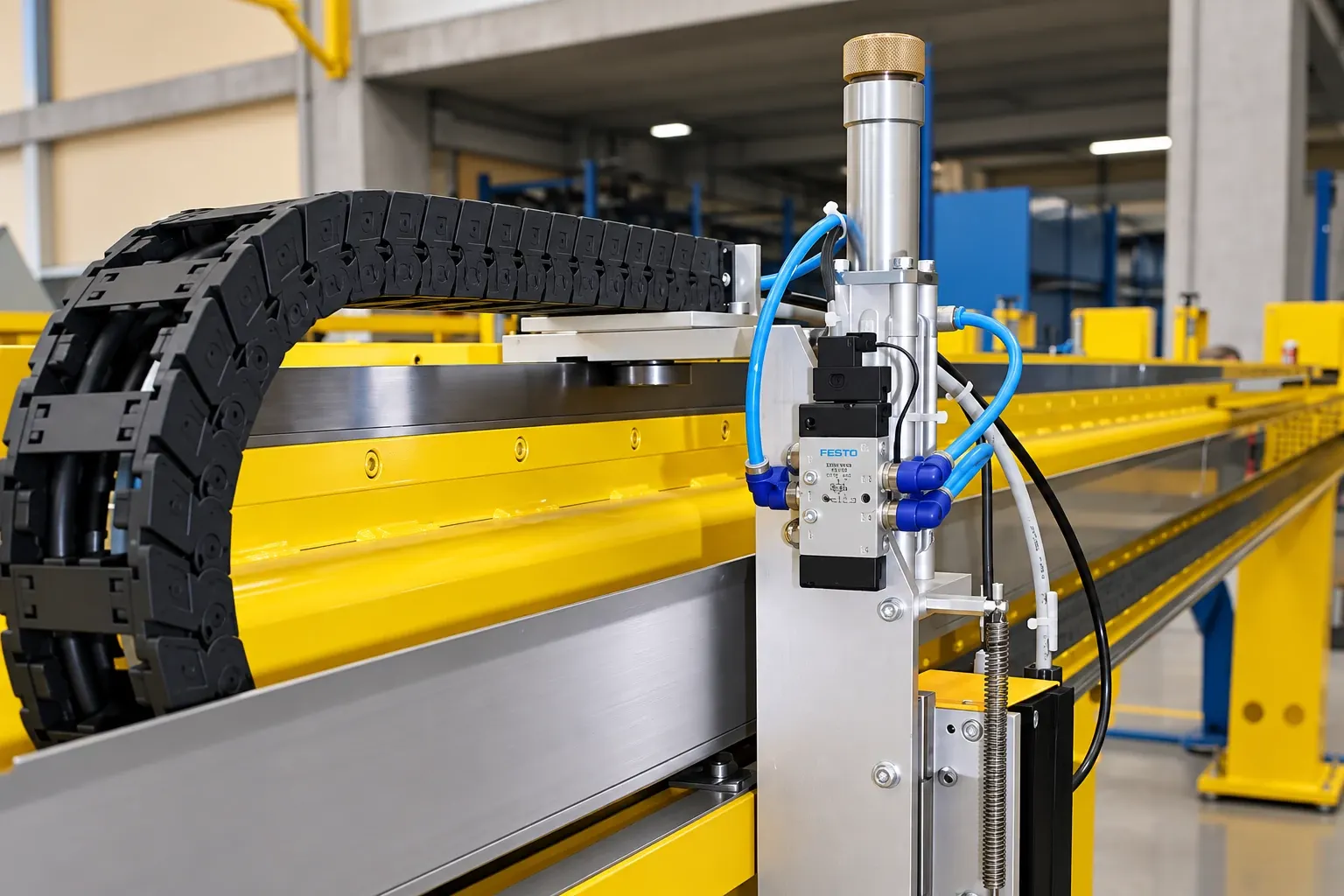

An e-chain® cable carrier controls the path and bend radius of moving power, data and media lines on a CNC cutting machine. Internal separation keeps different cables and hoses organized, while proper strain relief helps reduce mechanical stress at connection points. chainflex® continuous-flex cables can then be selected around the required travel, bend radius, dynamics and environmental conditions.

For complete systems, readychain® can combine cable carriers, cables and connectors into a pre-assembled energy supply to simplify machine installation.

The moving energy supply needs to follow rapid acceleration, reversal and repeated cutting cycles without becoming the limiting factor in machine motion. Cable carrier geometry, cable selection, bend radius and system weight can all become more important as cutting speed and acceleration increase.

In one documented cutting-machine application, an E6 e-chain® system guides cables across 6 m of travel at speeds reaching 12.5 m/s and acceleration of 30 m/s². The E6 design is intended for smooth, low-vibration operation at high speeds and accelerations.

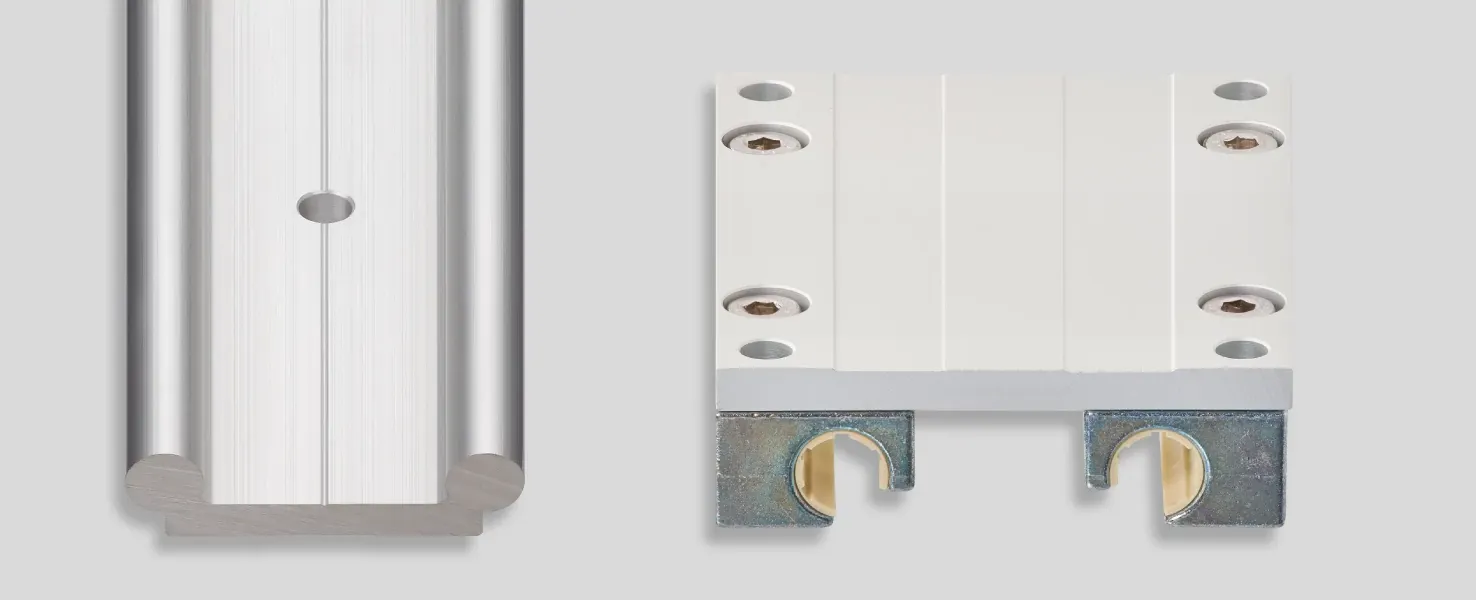

Linear motion appears throughout CNC cutting machines in access doors, covers, sensors, adjustment mechanisms and other auxiliary positioning functions. drylin® linear guides can provide grease-free guidance in suitable applications where contamination resistance, low weight and reduced maintenance are priorities.

There are also documented cutting-machine applications beyond purely auxiliary motion. A CNC laser cutting system uses drylin® W linear guides on its X and Y axes, while SATO uses drylin® W alongside its energy-supply systems in demanding flame and plasma cutting machines. These examples should support appropriate applications rather than imply universal replacement of precision rolling guides.

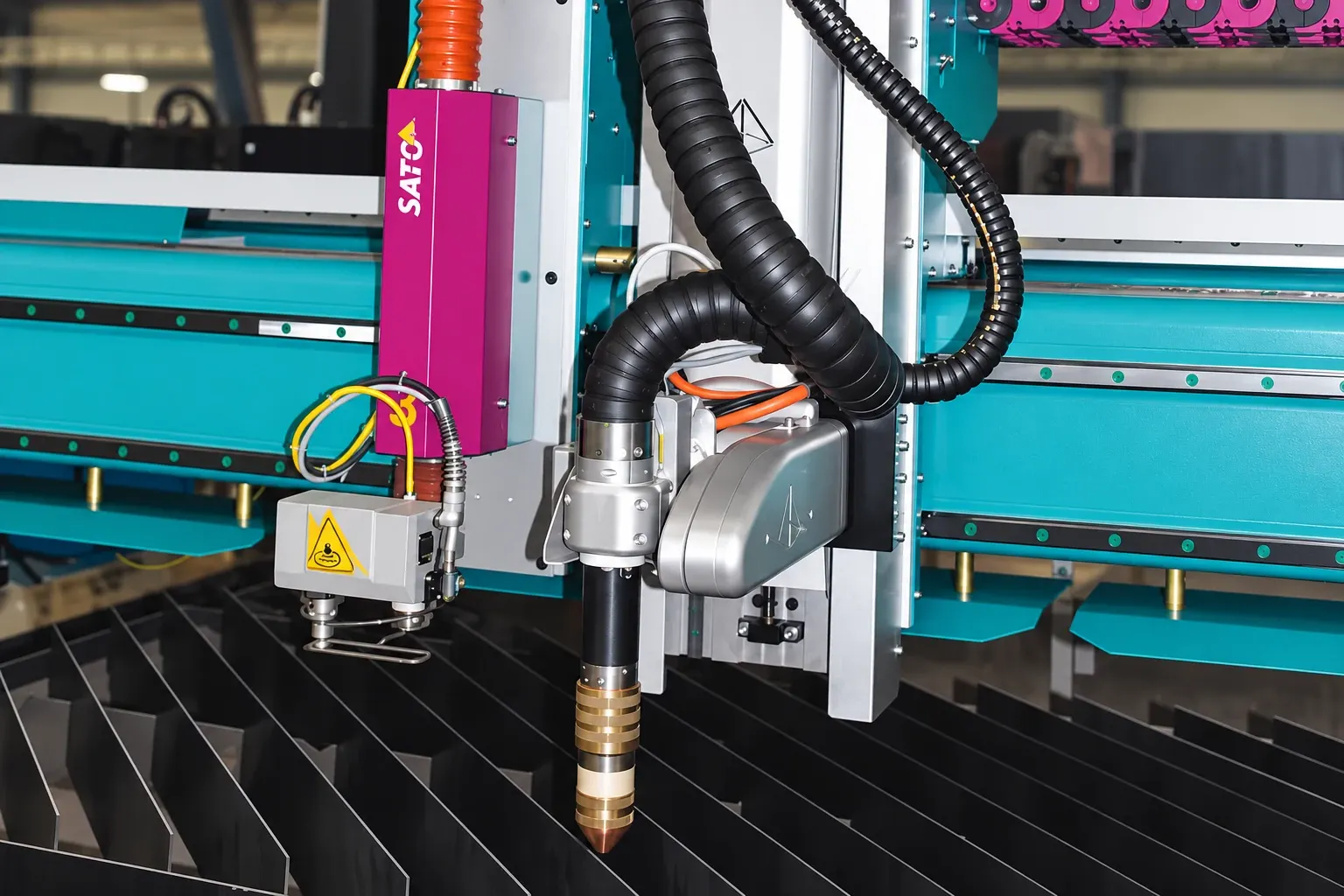

A 3D cutting head may tilt and rotate in addition to moving linearly, so standard straight cable routing may not provide enough freedom of movement. triflex® R multi-axis cable carriers guide cables and hoses through combined movements while maintaining a defined bend radius and controlling torsion around the moving cutting head.

SATO uses triflex® R on compact 3D plasma bevel units alongside conventional linear e-chain® systems elsewhere on the same cutting machine, demonstrating how different cable-management technologies can support different axes and motion types within one system.
