First linear bearing made of FDA-compliant polymer

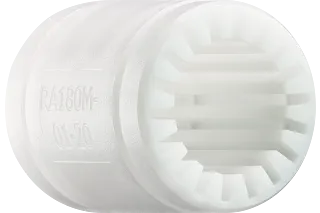

Linear bearing made of FDA-compliant polymer

Compliant and reliable
Our new linear plain bearings made of iglidur polymer are designed for use in filling/food/pharmaceutical technology. Cost-effectively injection moulded from the FDA-compliant material iglidur® A180, the bearings are extremely tough and resistant. Also very easy to clean and the secure press fit in the bearing housing leaves no gap or space to the housing wall.

Icon arrow

Tech up

  • FDA-compliant igus® polymer for use in the food environment
  • Firm press-fit
  • 80% weight saving compared to dimensionally identical bearings made of stainless steel
  • Integrated dirt channels for applications with high levels of dirt
  • For all round shafts with Ø12, 16 and 20mm
Icon money

Cost down

  • 1:1 dimensionally interchangeable with standard ball bearings
  • Simple handling with lightweight parts
  • Easy and fast cleaning possible
  • Reuse of previous adapters and housings
  • Manufacturing with the injection-moulding method
icon people

Proof

  • Tested: for temperature ranges from -50°C up to 90°C
  • Tested: max. moisture absorption at 23°C and 50% relative humidity; result 0.3% weight
  • Tested: linear up to four times quieter than metal bearings
icon sustainability

Sustainability

  • 100% lubrication-free and maintenance-free operation
  • No contamination in the application environment

Order free samples and try out

RA180M

Simply order free RA180M sample and test it yourself

Request RA 180M sample here

Ask our experts

Contact igus expert

Our igus® expert will gladly advise you in this regard with no strings attached.

Contact us here

Download current catalogue

News HMI 2020

Easily download the PDF with a mouse click and learn about igus® innovations.

Go to the PDF downloads

Further drylin® products

shopping icon

Discover a variety of products and solutions for your problems in our online shop.

Go to the other products

Application examples of our drylin® products

Carpentry project Cologne Chamber of Trade

igus® helps prospective carpenters with their project

As part of a course in machinery at the Cologne Chamber of Trade, prospective carpenters combined Scandinavian looks with industrial design. The results of this project are a pull-out bedside table and a coffee table with rotating drawer and pull-out opening. The pieces of furniture are not only beautiful to look at, but have a certain quality.

igus blister centre

igus® in the storage technology of a blister centre

igus® bearing technology in an automated blister centre. Automated medicine handling for chemist shops/pharmacies: with over 7,500 systems installed worldwide, Rowa Systems from Becton Dickinson is a clear leader in this market segment.

igus labelling machine

igus® components in KHS labelling machines

Numerous rotary and linear bearings from the igus® product range are not the only ones installed in KHS GmbH's labelling machines. igus® also supplies complete, ready-to-install modules such as adjustment systems and guide rollers, etc.

fabmaker educational printer

Linear guide components for 3D printers

Technology-oriented startup businesses are more daring than others in deploying emerging technologies in new, marketable products. This is also true of fabmaker GmbH, Braunschweig, which has developed a 3D printer for educational purposes.
