Shop Miniature e-chains® Cable Carriers for confined installation spaces

Miniature cable carriers with maximum bend radii and minimal dimensions in one or two parts. Openable or simply press in or pull out cables using the "easy design".

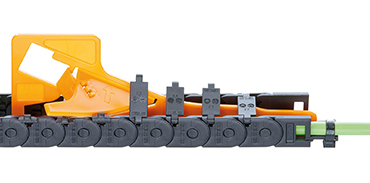

E2.1 micro

Stronger generation for smallest installation spaces
E2.1 micro

  • Inner height: 10.1 to 14.9mm
  • Available in three options:
    • Closed
    • Openable from both sides along the inner radius
    • Openable from both sides along the outer radius

  • Integrated brake for especially smooth, quiet running
  • 25% longer unsupported length and 100% higher fill weight in comparison to identical design
  • Optional opener tool for even quicker opening and closing


To the E2.1 micro shop

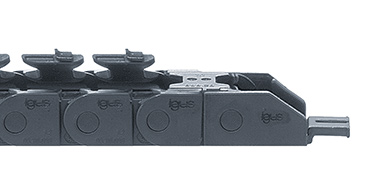

E2 micro

For smallest installation spaces with smallest inner heights
E2 micro

  • Inner heights: 5 to 15.6mm
  • Available in three options:
    • Closed
    • Openable along the outer radius
    • Openable along the inner radius with film hinge

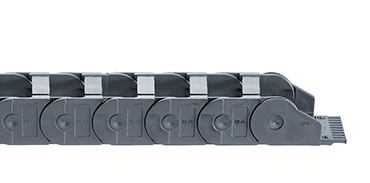

E-Z chain®

easy chain
Very easy to fill and cost-effective

  • Inner height: 5 to 48.5mm
  • Available in two versions:
    • Fillable along the outer radius
    • Fillable along the inner radius
  • Simply press in or pull out cables
  • As available with multi-chamber design
  • UL94-V2 classification

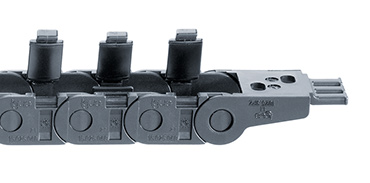

E2 mini

E2 mini
Small and very stable

  • Inner height: 17 to 41mm
  • Available in three versions:
    • Closed
    • Openable along the inner radius
    • Openable along the outer radius

zipper

Zipper
"Zipper-like" design for quick opened and closing

  • Inner height: 9 to 32mm
  • Crossbars on a strip along the outer radius
  • Quiet running thanks to the chain links' small pitch
  • Also available as a closed "tube version"
  • iF Design Award for zipper-like design
