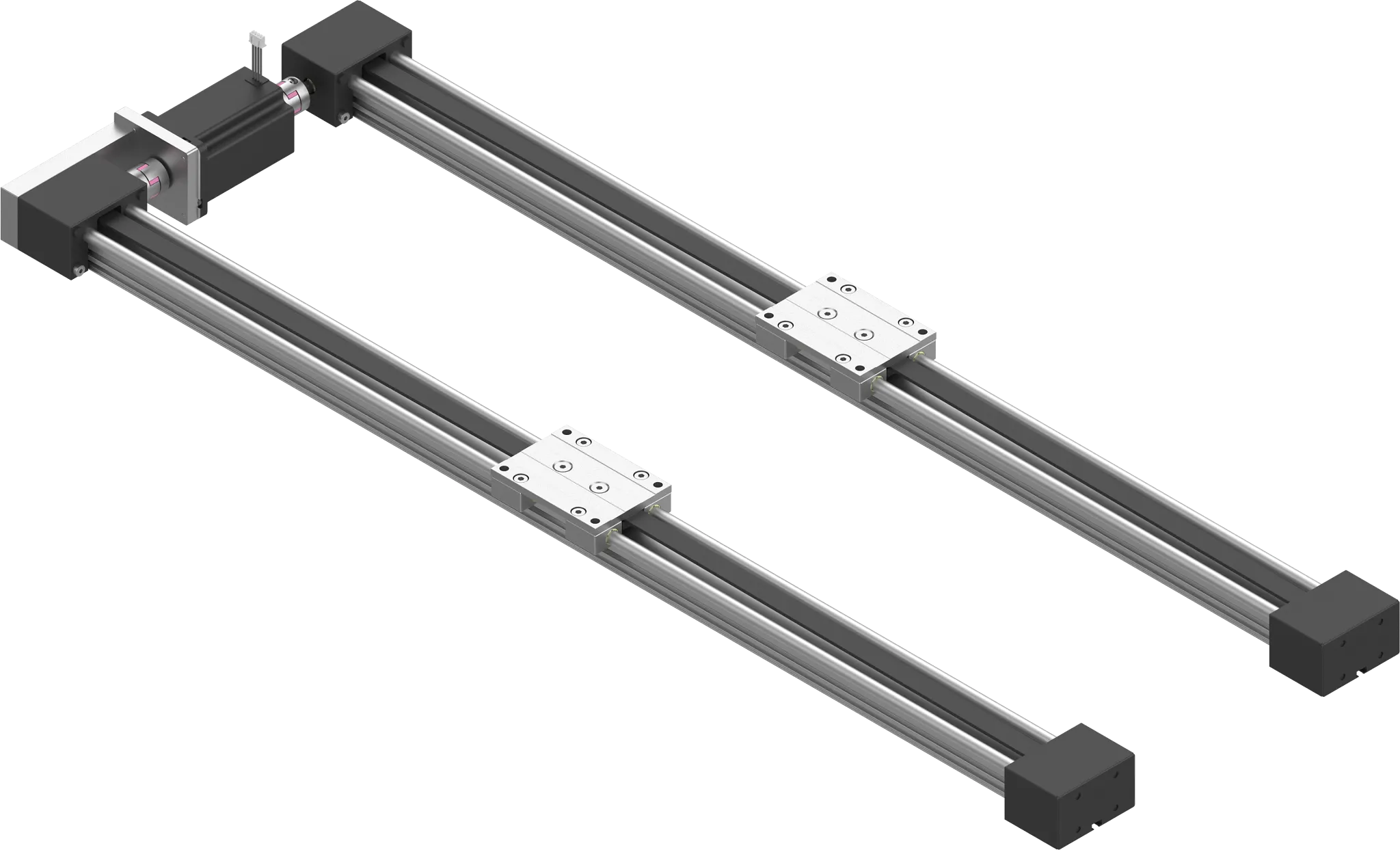

Belt Driven Linear Actuators: drylin® ZLW

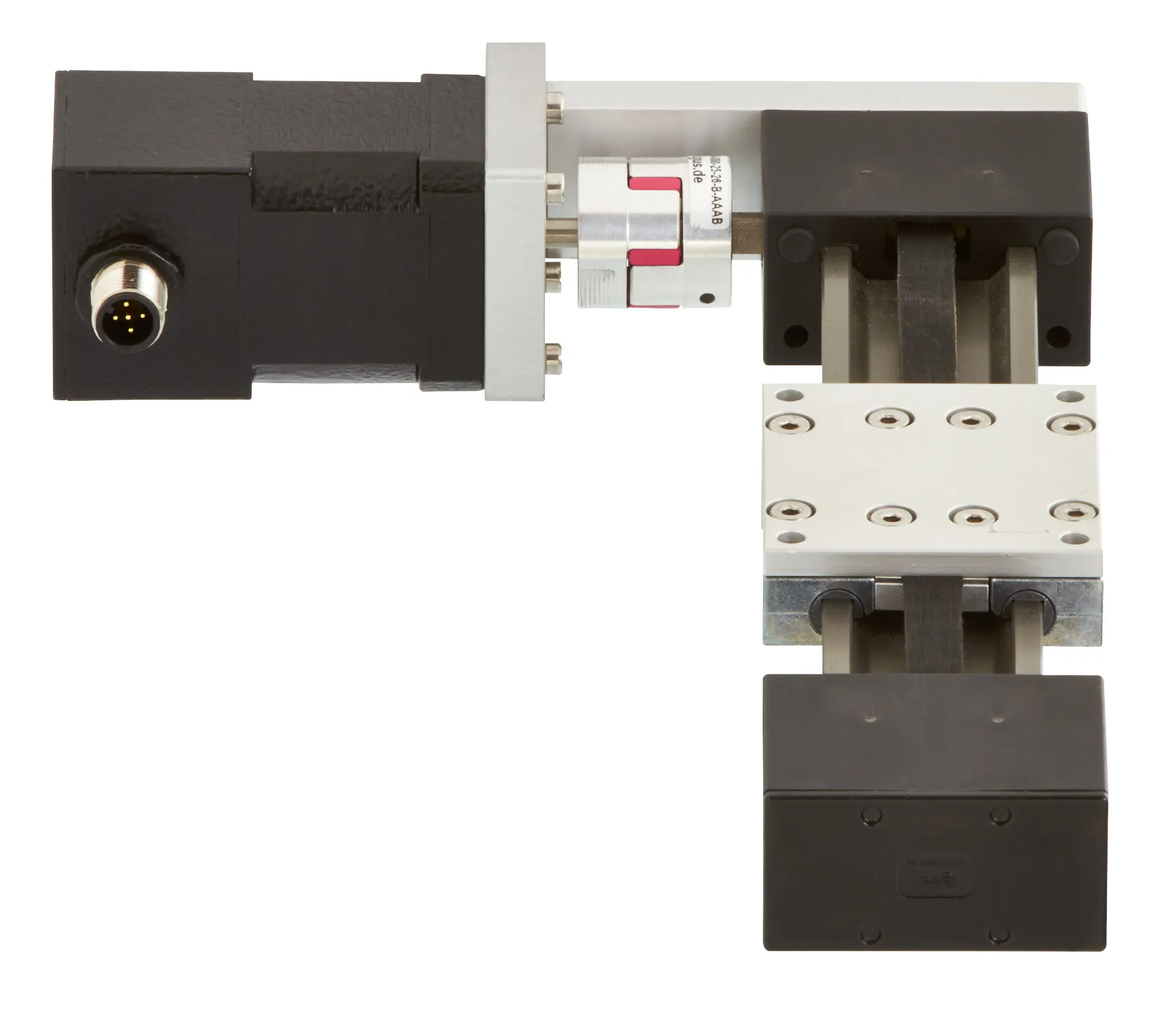

The drylin® ZLW is a line of toothed/timing-belt actuators that are best suited to move low loads at high speeds, even up to 5 m/s depending on the load.  Each linear actuator system is designed with our own highly engineered,dry-running plastic bearing liners which enable quiet, grease-free and maintenance-free operation. Whether used as an individual system or as part of a gantry robot system, the ZLW series offers the ideal solution when both confined space and a high level of torque support are required. All drylin® ZLW belt driven linear actuators can be ordered ready for installation and configured with drylin® E stepper and DC motors.

Benefits:

  • Dry-running plastic linear bearing liners
  • Ideal for speeds up to 2-3m/s
  • Long strokes up to 3,000mm
  • Lightweight anodized aluminum profile

Industries:
Lab and medical, Automation machinery, Marine, Food processing, Packaging, 3D printing, AGV

Browse our ZLW Linear Actuators

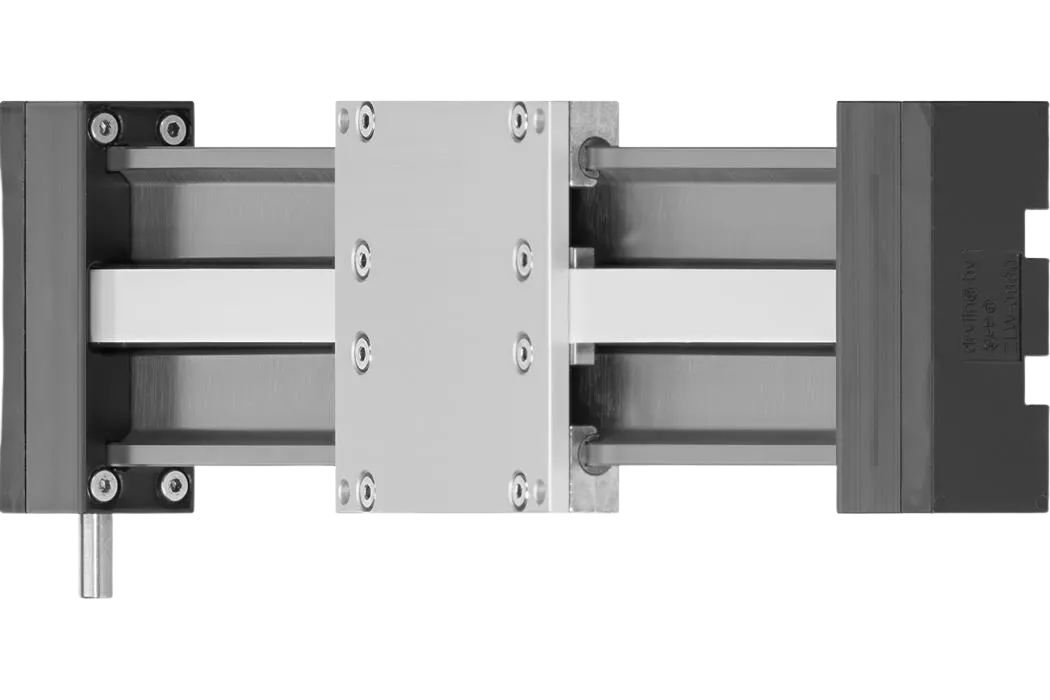

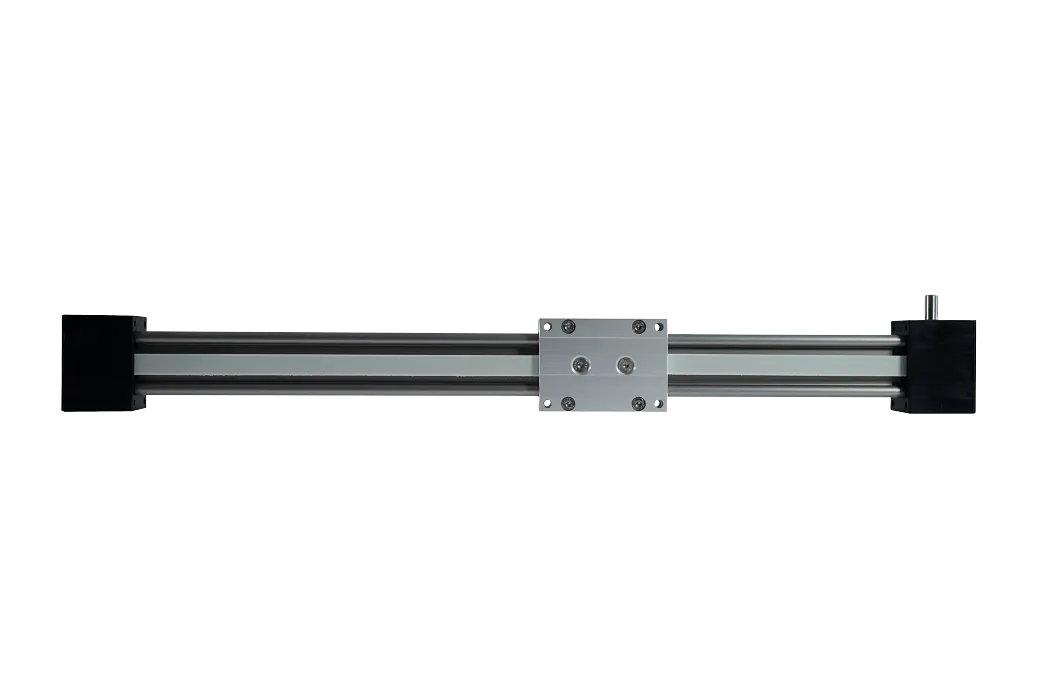

ZLW basic (B) and standard (S)

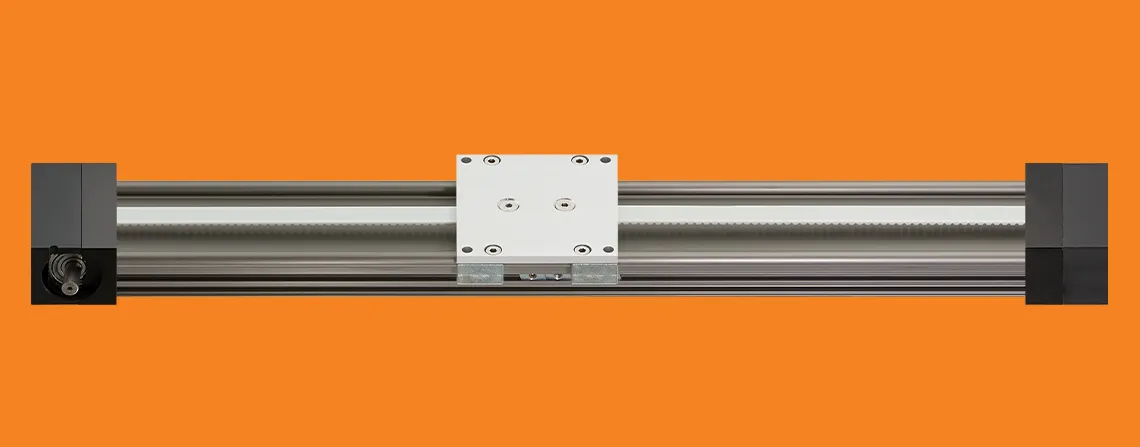

ZLW SB

Stainless Steel (SS), Aluminum (AL)

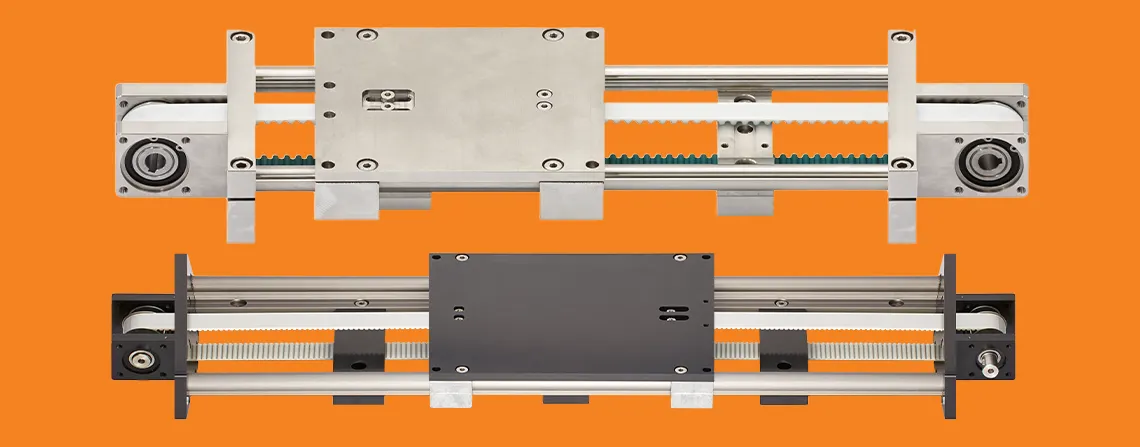

ZLW-SA

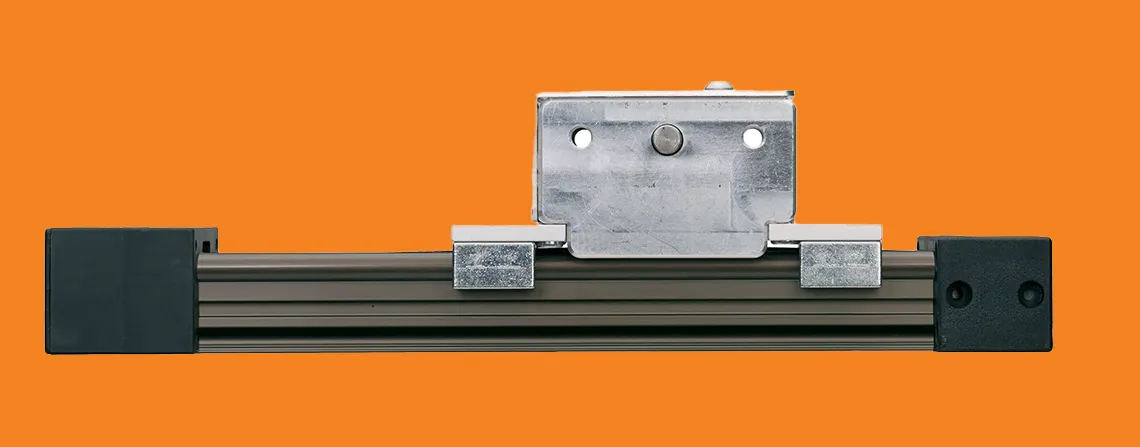

Cantilever Axis (ZAW)

ZAW

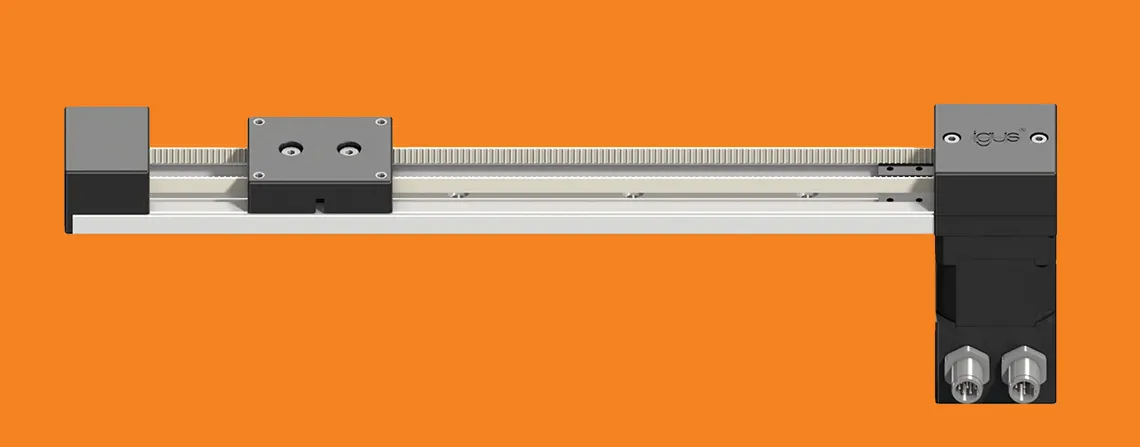

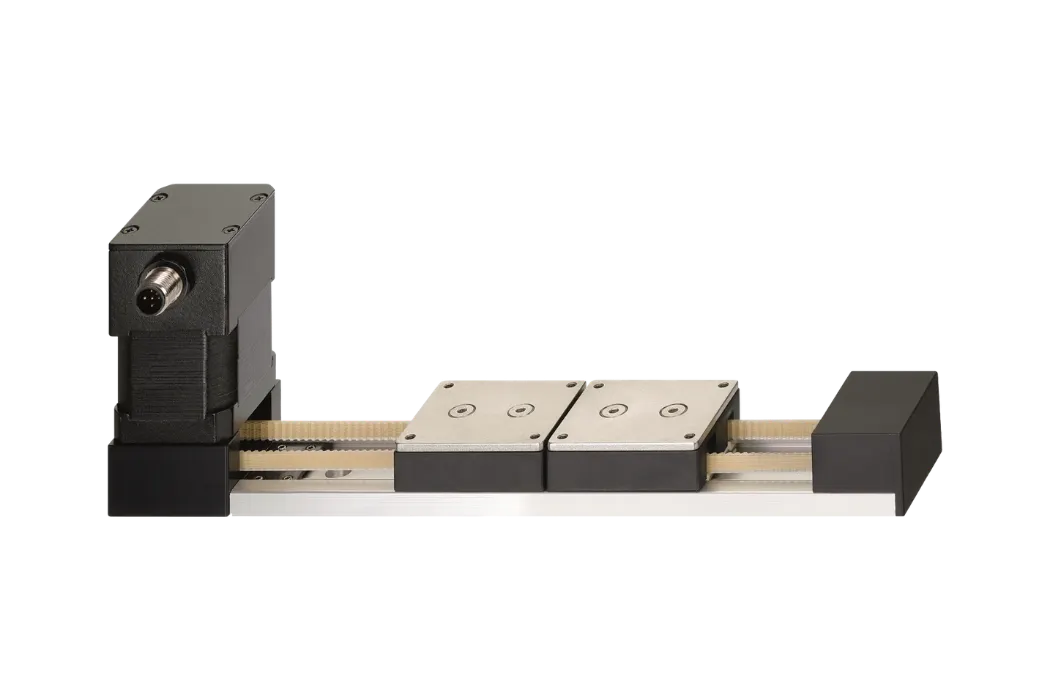

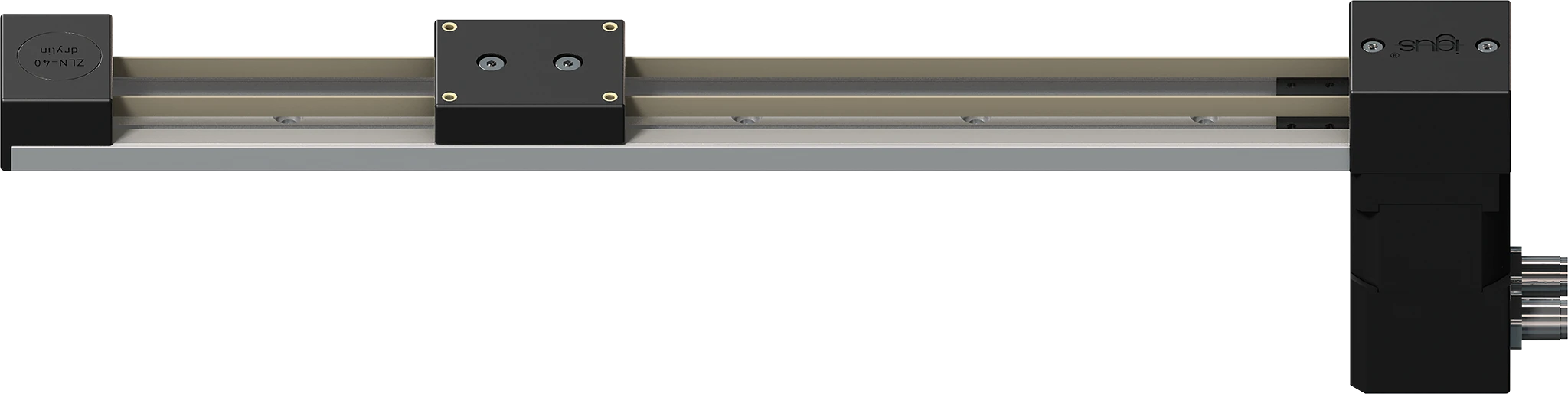

Low-profile, miniature (ZLN)

ZLN

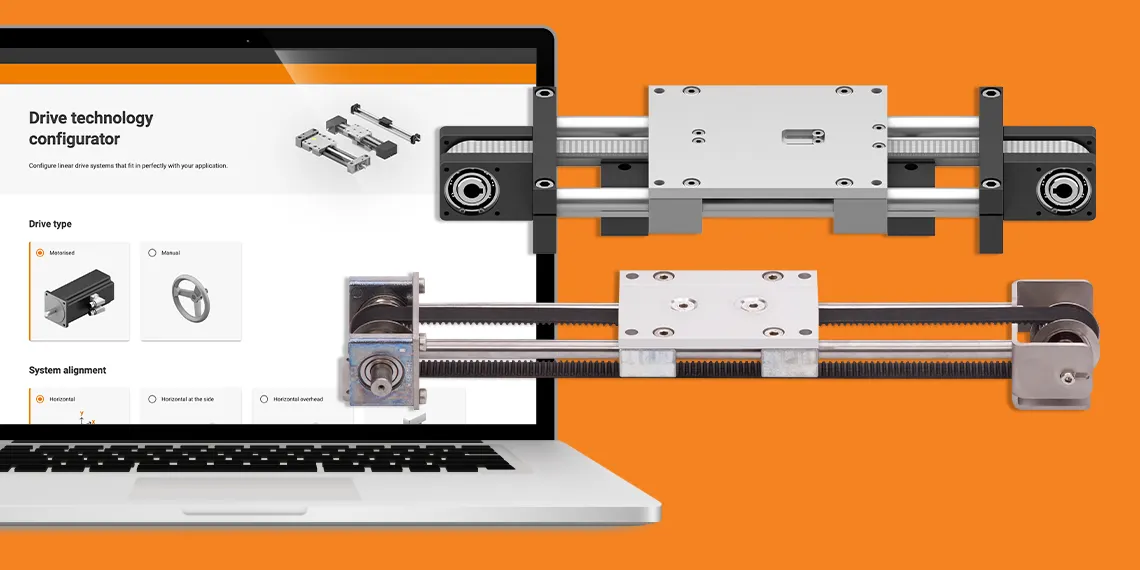

Linear Actuator Configurator

Linear Actuator Configurator

The linear actuator configurator is a comprehensive system for finding specific components based on your application requirements, configuring your own unique system, calculating service life, and placing an order — all in one place. Simply enter your parameters, select one of the linear actuators presented, and add it to your shopping cart.

Use the Linear Actuator Configurator

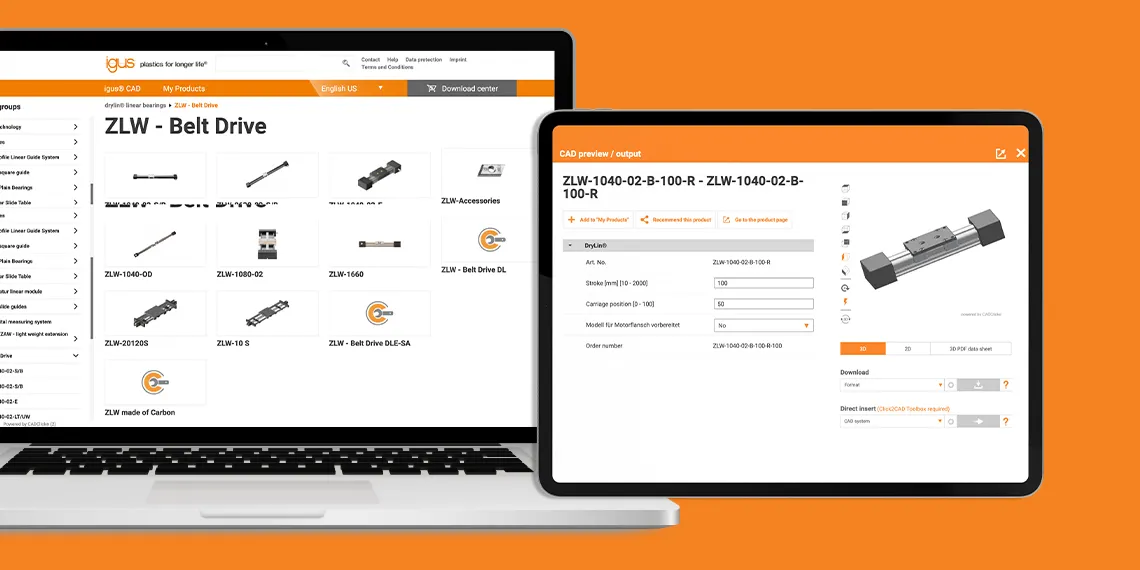

Browse the CAD Library

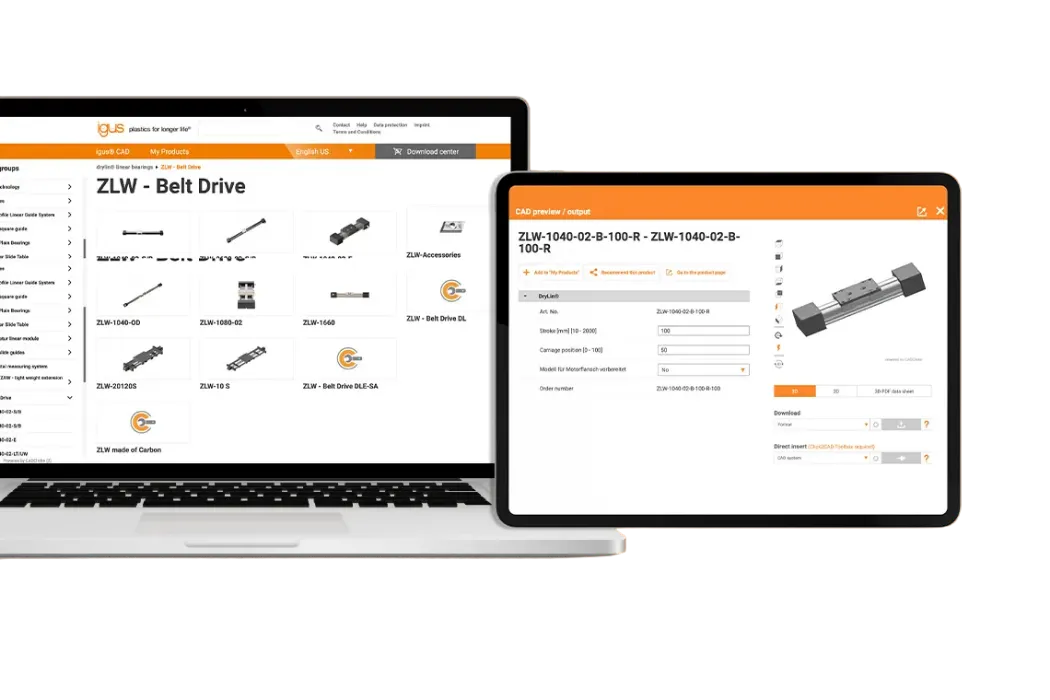

ZLW CAD

Receive CAD files instantly with this tool. Select the desired drylin® linear bearing product group and you will see the range of drylin® products to choose from. Once you find the exact product you need more information about, you’ll be able to see the CAD models in various views with downloadable PDF versions.

Browse the CAD Library

Applications

order picking station

Linear actuators in Pick & Place order picking station

A picking machine equipped with 2D and 3D cameras with drylin linear units with toothed belt drive (ZLW 1040 and ZLW 1080) ensures the automatic detection of empties. The systems are 100 percent self-lubricating and are characterized by extremely smooth running, high speeds and a high degree of accuracy.

Automated cocktail mixer

The so-called "CocktailAvenue" is considered an innovation in the catering industry and provides automation behind the bar counter with mixed cocktails. In terms of technology, igus ensures a reliable operation of the construction with its product range. A drylin ZLW toothed belt axis works with an electric motor without the use of external lubricants and is completely vibration-free and insensitive to stubborn dirt. The timeless design of the linear axis also impresses.

More applications

Here you will find further successful application examples from our customers with drylin linear axes with toothed belt drive.

Contact a Linear Actuator Expert


Whether you're interested in end-to-end, fully assembled solutions or looking to build your own customizable project, let us assist you with a solution based on your specific application and requirements. Contact us via the form below or call us at (800) 521-2747  to discuss your project today!
