drylin® curved linear guides and rails

Custom radii. Self-aligning carriages. Easy installation.

Among the drylin® linear product line is a range of curved rails. The guides are bent according to custom radii to meet the customer’s specific application requirements. The carriages are also self-aligning due to the spherical bearings and are available with an optional manual clamp. Both drylin® W and drylin® T profiles can be bent as desired.

Benefits:

  • Self-lubricating drylin® linear guide system on curved profile
  • Variable bending directions
  • Variable bending radii, rail lengths and bearing/carriage combinations
  • Torque-resistant alternative to curved tube profiles
  • Customized services based on application

Typical applications

  • Adjustments of machine doors
  • Monitors, operating and control machines
  • Marine
  • Aerospace
  • Stage construction

Shop curved linear guides

drylin® W double rail, WSB, round, quarter circle

drylin® W double rail, WSB, round, quarter circle

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Round
  • Quarter circle
Browse the Shop

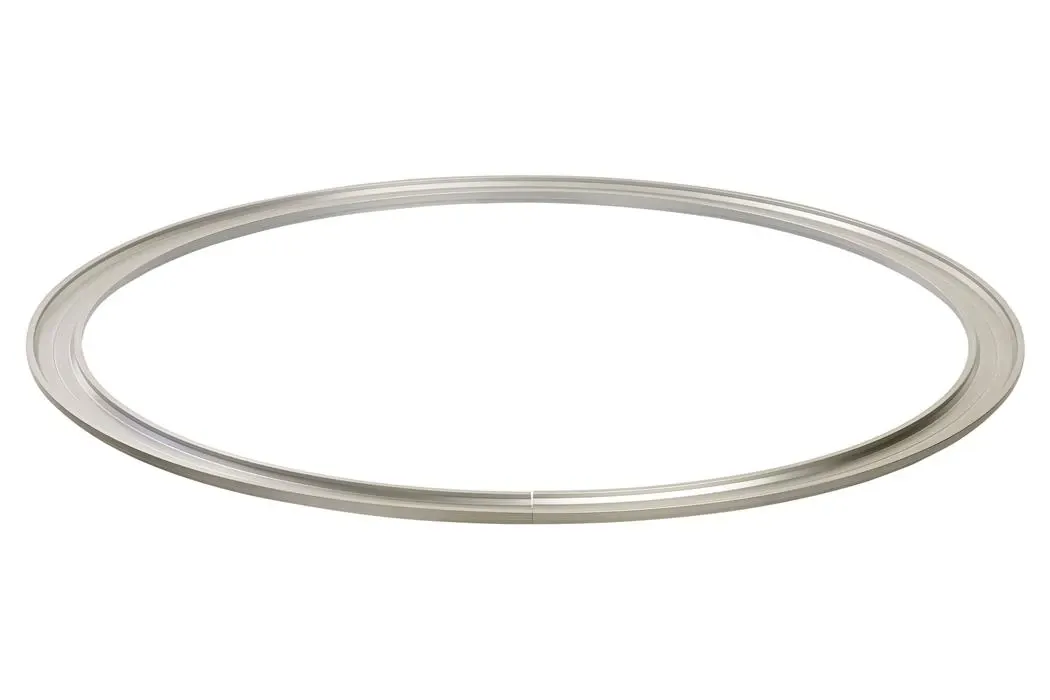

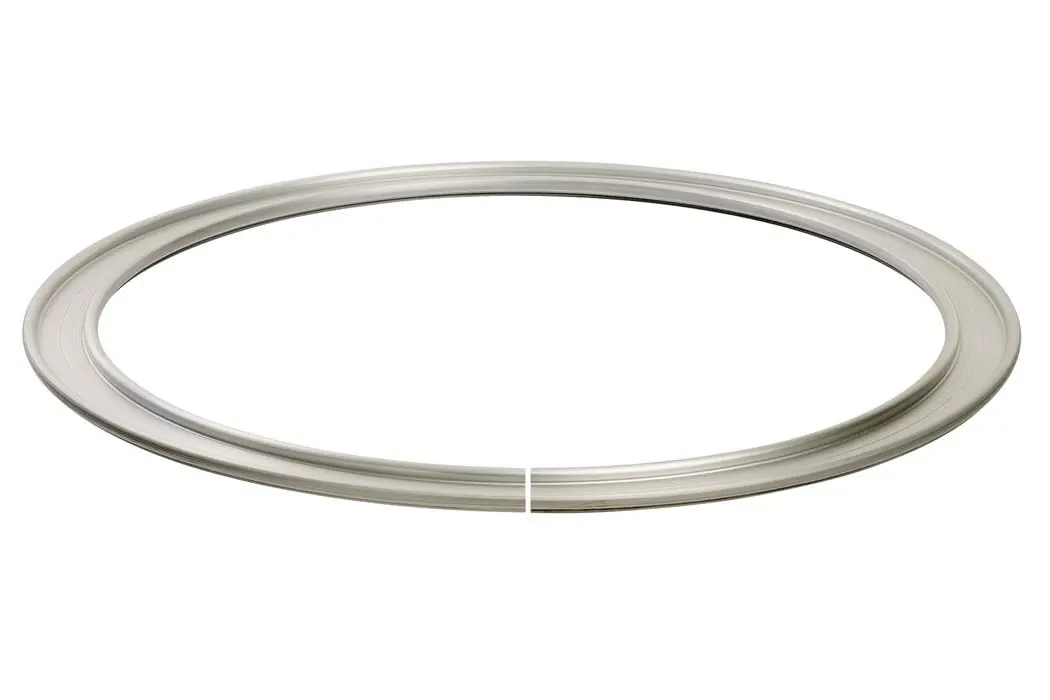

Design: Double Rail Material: Aluminum, clear anodized Rail profile: Round Full circle

drylin® W double rail, WSB, round, full circle

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Round
  • Full circle
Browse the Shop

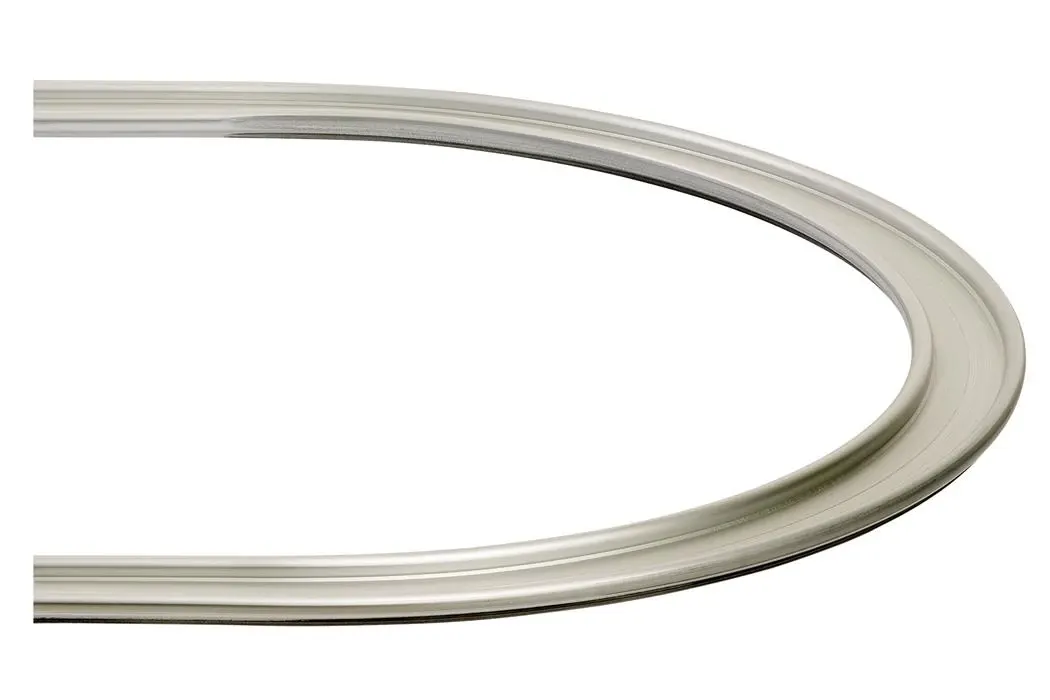

drylin® W double rail, WSB, round, half circle

drylin® W double rail, WSB, round, half circle

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Round
  • Half circle
Browse the Shop

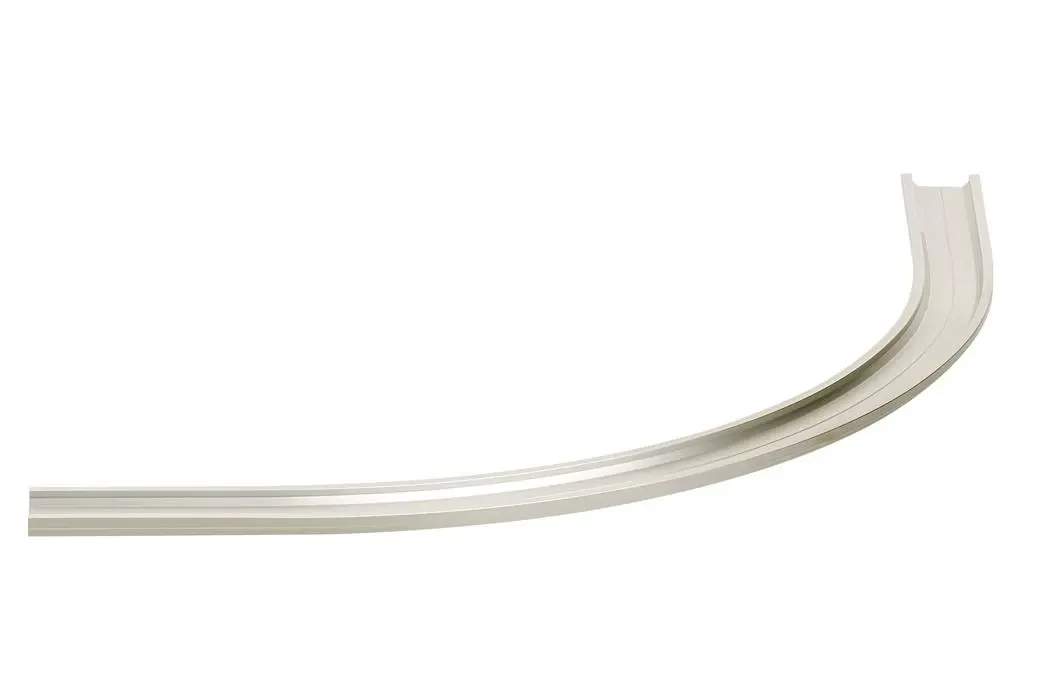

drylin® W double rail, WSB, square, quarter circle

drylin® W double rail, WSB, square, quarter circle

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Square
  • Quarter circle
Browse the Shop

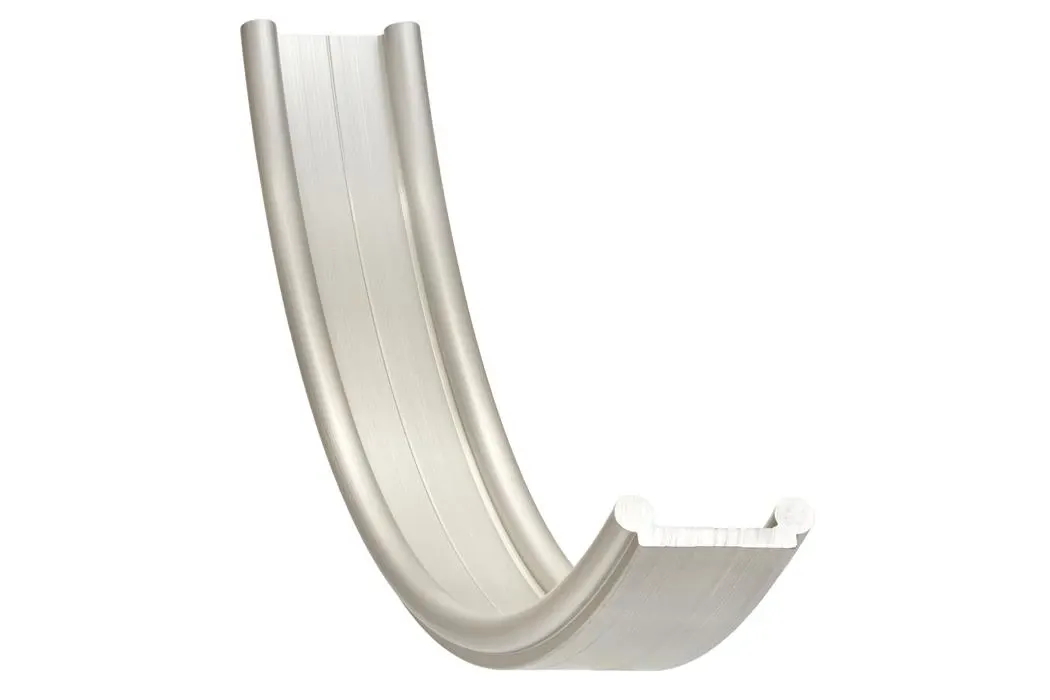

drylin® W double rail, WSB, round, convex

drylin® W double rail, WSB, round, convex

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Round
  • Convex
Browse the Shop

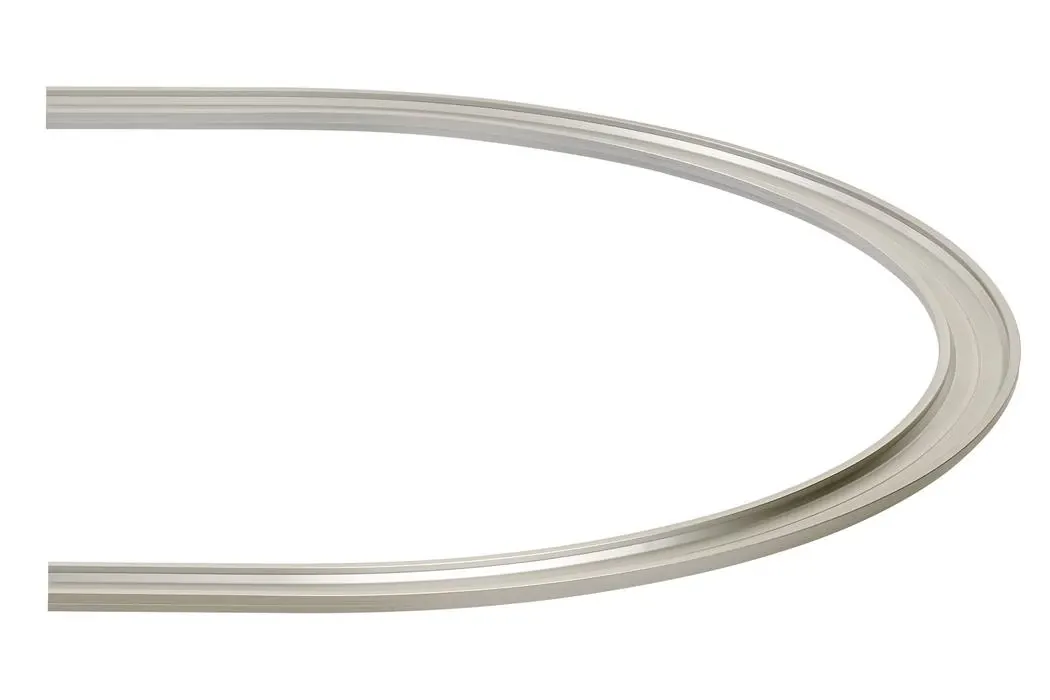

drylin® W double rail, WSB, square, half circle

drylin® W double rail, WSB, square, half circle

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Square
  • Half circle
Browse the Shop

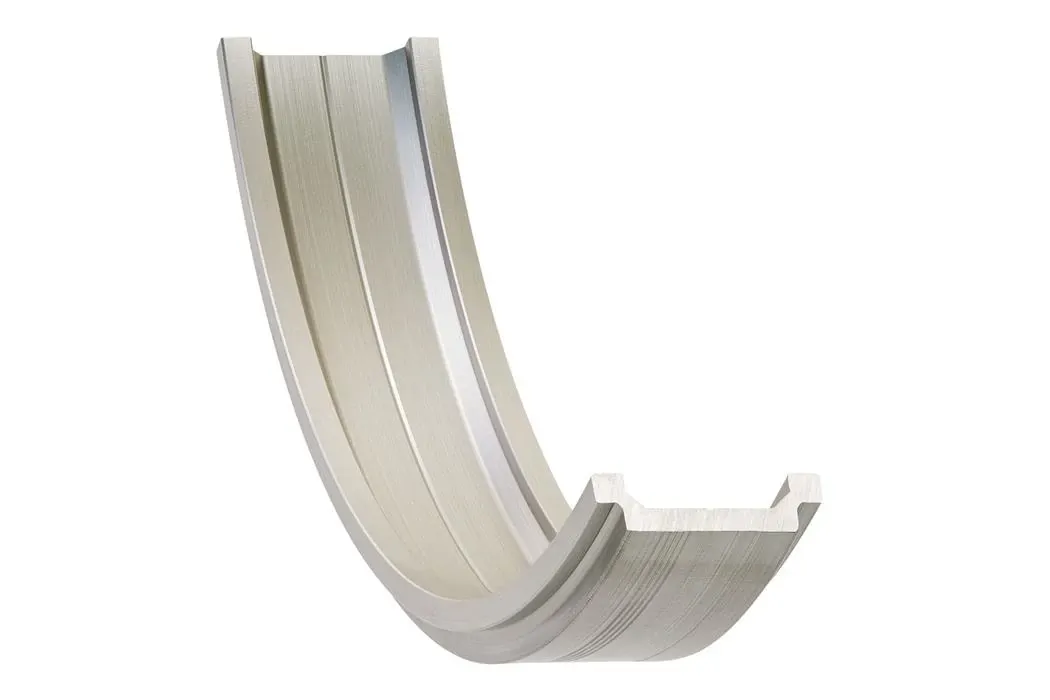

drylin® W double rail, WSB, square, convex

drylin® W double rail, WSB, square, convex

  • Design: Double Rail
  • Material: Aluminum, clear anodized
  • Rail profile: Square
  • Convex
Browse the Shop

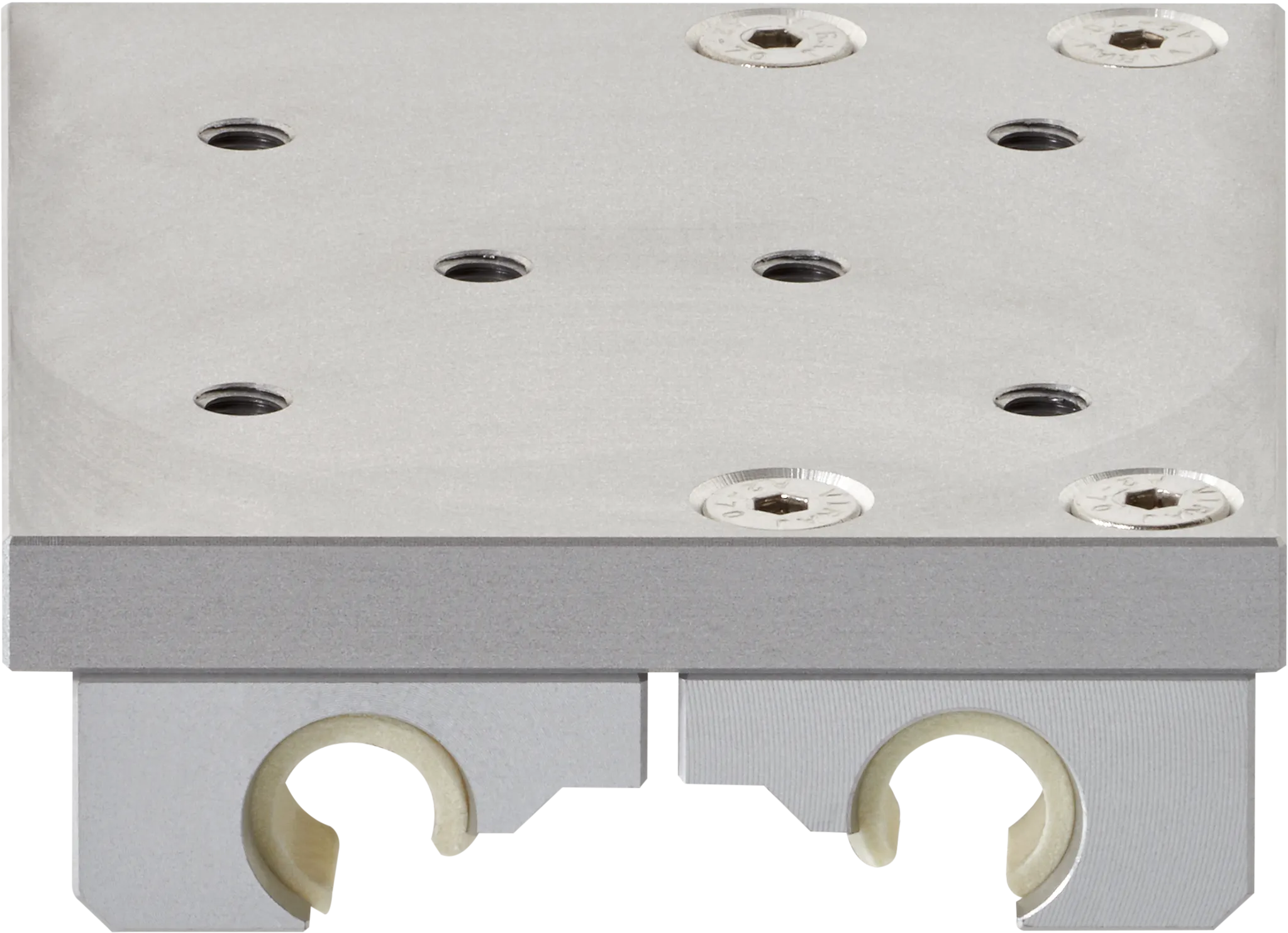

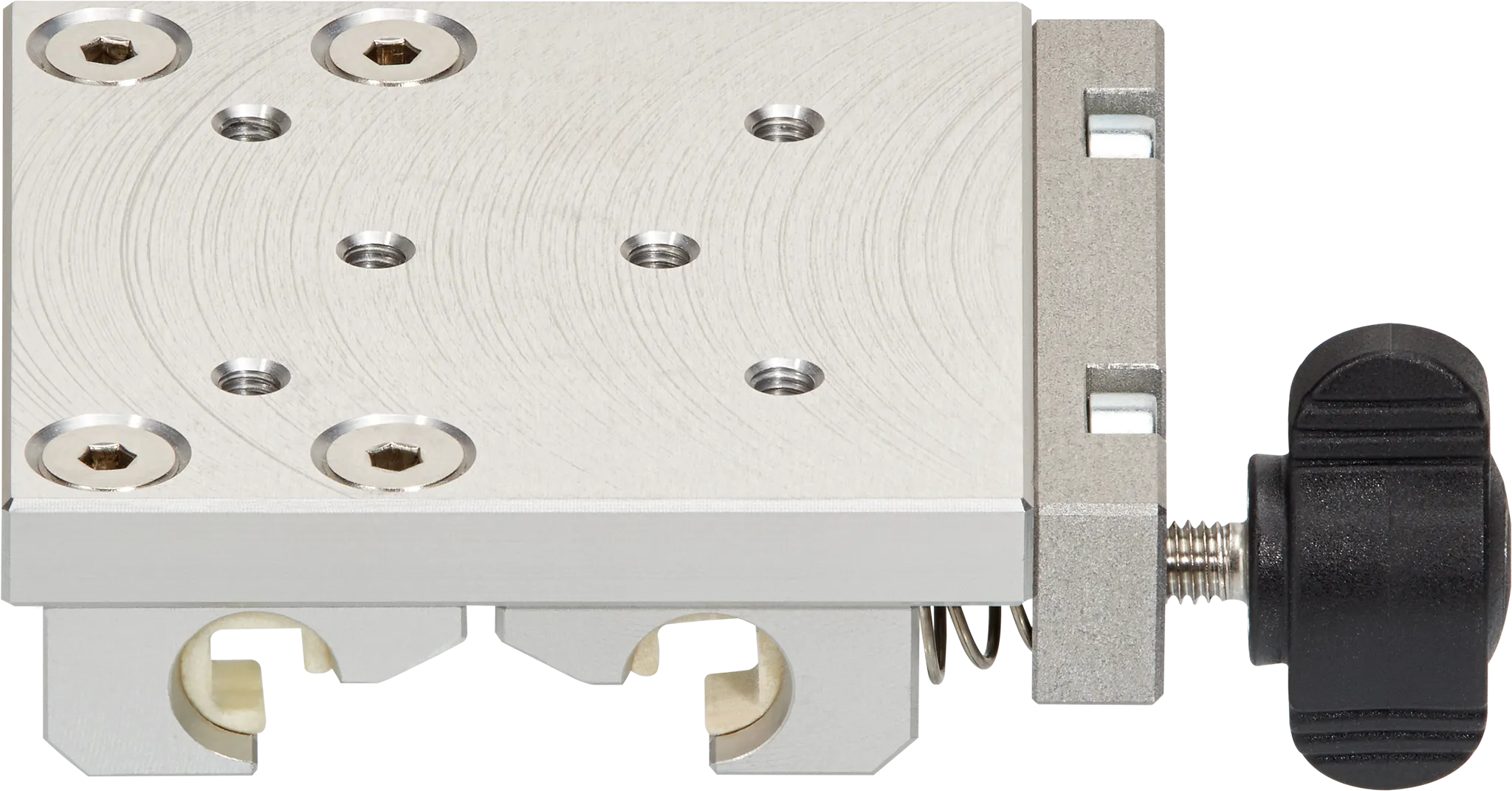

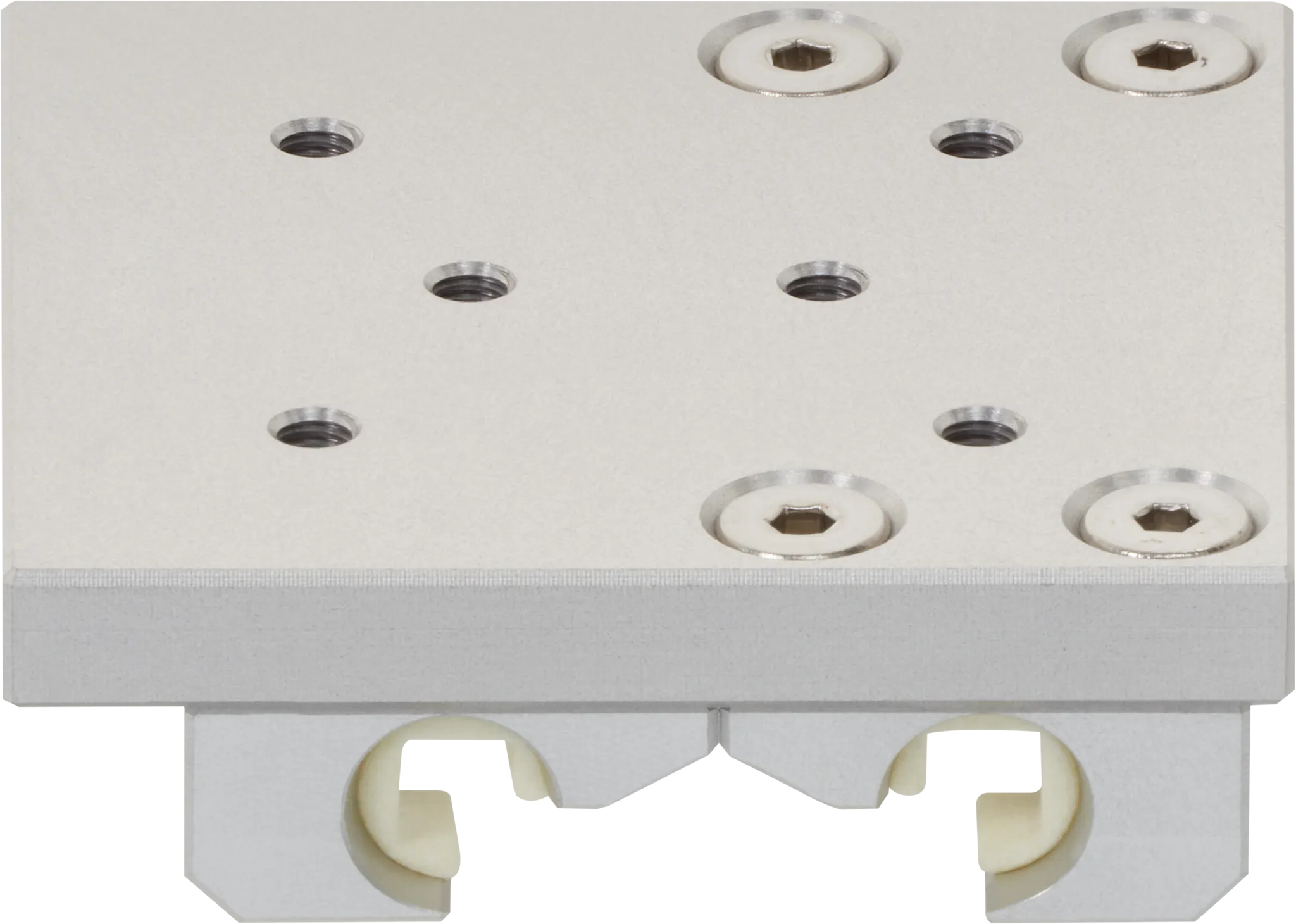

drylin® W carriage for curved rail preloaded WWB, round, curved bends, manual clamp

drylin® W carriage for curved rail preloaded WWB, round, curved bends, manual clamp

  • Design: round
  • Material sliding element: iglide® I3
  • With manual clamp
  • For bending direction: curved bending
  • Material: Die-cast zinc
Browse the Shop
drylin® individual bearing housings for curved rails WI3UBP

drylin® individual bearing housings for curved rails WI3UBP

  • Material: Aluminum
  • Material sliding element: iglide® I3
Browse the Shop
