Multiple asset connection

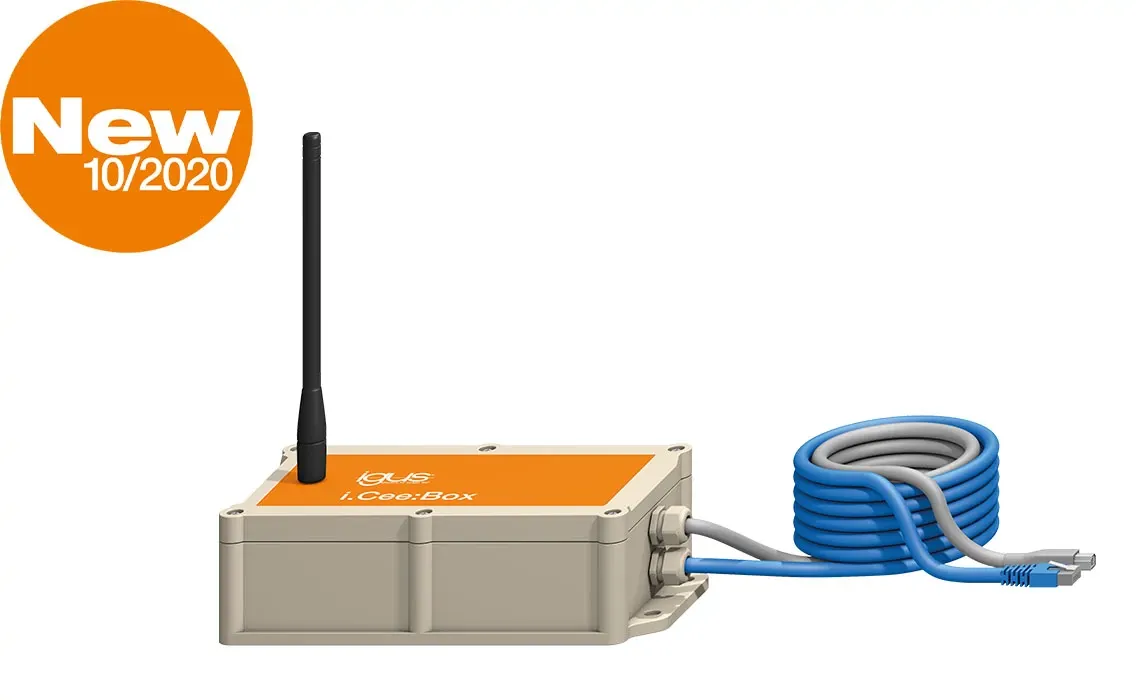

i.Cee.box ... LoRa Receiver & antenna

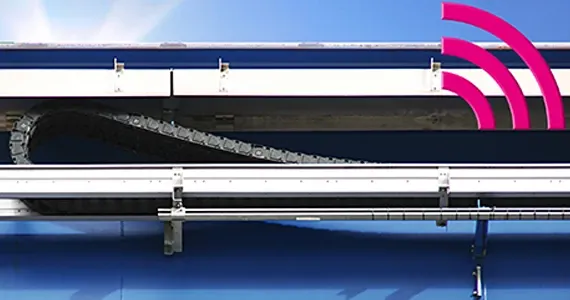

With the small i. Cee. box you can escape the control cabinet of the machine, which allows for data transmission to the sensor on the igus product via LoRa radio transmission standard.
The housing fulfils IP68 and hence protects the interior against the elements. The i. Cee. box allows for the connection of different assets, and the storing of all raw sensor data, making the selective deletion of individual data possible. Download is possible via USB or, on request, a continuous export via an IoT connection.
Richard Habering introduces the i.Cee:box
- The software is offered a home outside the control cabinet, which improves data transmission
- The box communicates locally with the hardware and software of the application and does not require an internet connection
Tech up
- Integrate up to 20 i. Cee:sensors with LoRa radio transmission standard
into the customer's local network
and align preventive maintenance information to
service life information from the e-chain system® and/or dry-tech® products - By default without an IoT connection
- Range up to 80m
- Link to customer's system via local network
- Output of preventive maintenance information and
sensor data via HTTP dashboard, PLC register,
JSON, TXT, OPC-UA
Cost down
- Administer multiple assets with an i. Cee:Box
- Use of standard IT technology - 11%
cost reduction compared to i. Cee:Plus & antenna (list price)
Proof
- Ongoing testing in the igus® test laboratory for dynamic energy supply systems, the largest in the world
Sustainability
- Extends product service life in many cases
- Recycle integrated energy chain through the igus chainge program free of charge
- More on the igus contribution Plastic2Oil
Potential application areas of the i.Cee.box
- Linear robots in the automotive industry
- Cranes in container logistics
- Production cranes
- Machine tools
- Woodworking machines
- Plastics machines
- Bulk handling
